Solar panels are the most important element in a solar system. For this reason Antoniou & Christou Company Ltd (¨ΘΗλΕΝ¨) is continuously investing in machinery or raw materials relating to their construction.

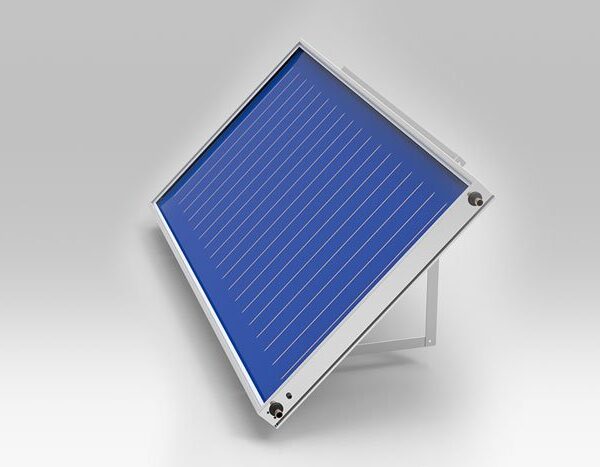

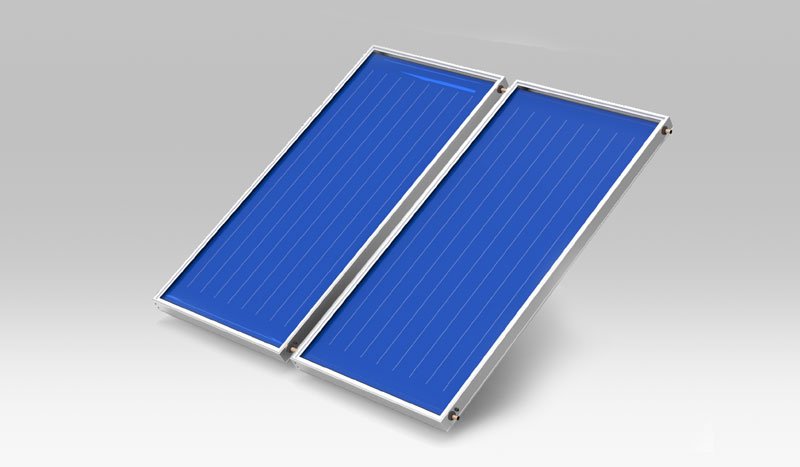

ΘΗλΕΝ¨ company manufactures three different frame sizes,
( TH.S.P 1,4m², TH.S.P 1,9m², TH.S.P 2,4m²) in vertical or horizontal format.
¨TH.S.P¨ panels due to their building quality and high performance levels have the ability to heat water in conditions of reduced sunlight and thus save energy.
TH.S.P 1,5m², TH.S.P 2m², TH.S.P 2,4m² frames are manufactured , externally from anodised aluminium rich in magnesium for durability.
Thermal insulation at the bottom of the drams is consisted of thermal conductivity rock wool λ=0,042w/mk class A1 (EN-13501-1) and the lateral insulation compiles fibreglass thermal conductivity λ=0,035w/mk class A1 (EN-13501-1).
The construction of single selective surface (copper or aluminium) is made with the use of robotic technology machines (ultrasound).
For the production of the frame ¨TH.S.P¨ a special protective glass is used (tempered class) low sodium (fe) and specific transmittance Tr = 0,912 ÷0,920 (EN1096-2).
Pressure control in 12 atmospheres (bar) is made during the construction of the panels.
Our company manufactures panels certified by the European quality certificate “Solar Keymark” (ΕΝ 12975:2006).
All ¨TH.S.P¨ panels bear a warranty.
